Monoblock chemical process pump
Monoblock chemical process pump
Material of Construction :-
Casing: All the wetted parts are made from investment casting, Sand casting with superior quality.
Impeller: The impeller is Open type, semi-open type, closed type hydraulically balanced by back vanes, used in our all metallic pumps to suit both clear and polluted fluids, sludge with fine particles.
Shaft: The Shaft is made from SS 316/Titanium/EN-8/SS410.
Bracket/Bearing Housing: Made from heavy duty graded casting coated with anti-corrosive paint.
Bearing: Standard Ball Bearings are used
Mechanical Seal: Use mechanical seal/Gland Type best suitable for your application.
Coupling: Love-Joy type
Base Frame: Made from heavy duty graded Cast Iron coated with anti-corrosive paint
Application :-
- Chemical Process Industries
- Sugar Plants
- Organic & Inorganic Liquids Refinerie
- Heating And Air Conditioning Plants
- Dyes & Intermediates Oil Extraction
- Waste Oil Refineries
- Bulk Drugs And Pharmaceutical
- Water Supply Hydrocarbon
- Volatile Liquids
- Distillery, Brewery Plants

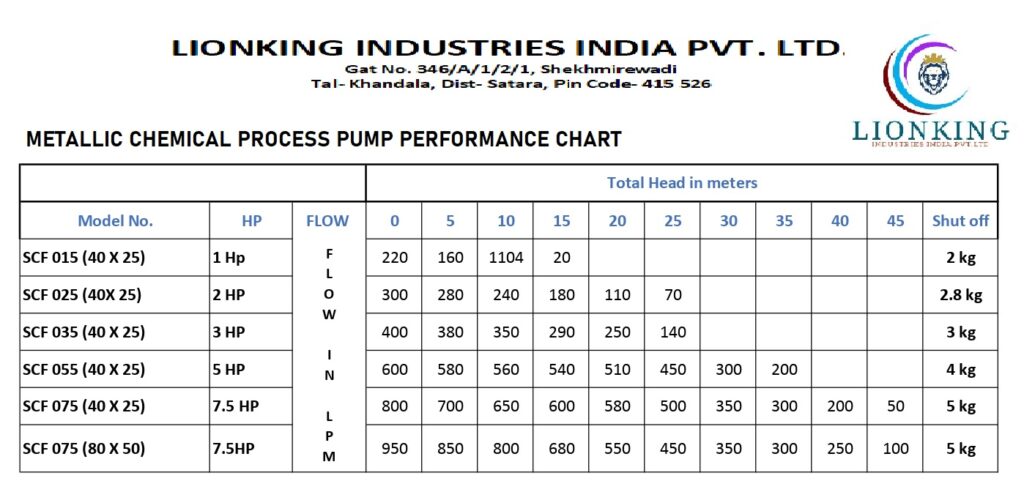

Technical Specification :-
- Capacity : 0.5 HP to 200 HP
- Head : 2 Meter to 100 Meter
- Flow : 3 m3/hr-25000 m3/hr
- Speed : 1440 RPM /2900 RPM at 50 HZ
1750RPM /3500 RPM at 60 Hz - MOC : SS316 / SS316L / SS304 / CI/ CS
- Temperature : up to 400 Deg Celcius
Water Treatment Plant | Effluent Treatment | Fertilizer Plants | Thermal And Atomic Power Plants | Scrubbing Plants | Drugs & Pharmaceutical Industries Paper & Pulp Industries | Picking In Steel Rolling Mills | Scrubbing Plants Cooling Tower
