Gear Pumps (Metallic)
Gear Pumps (Metallic)

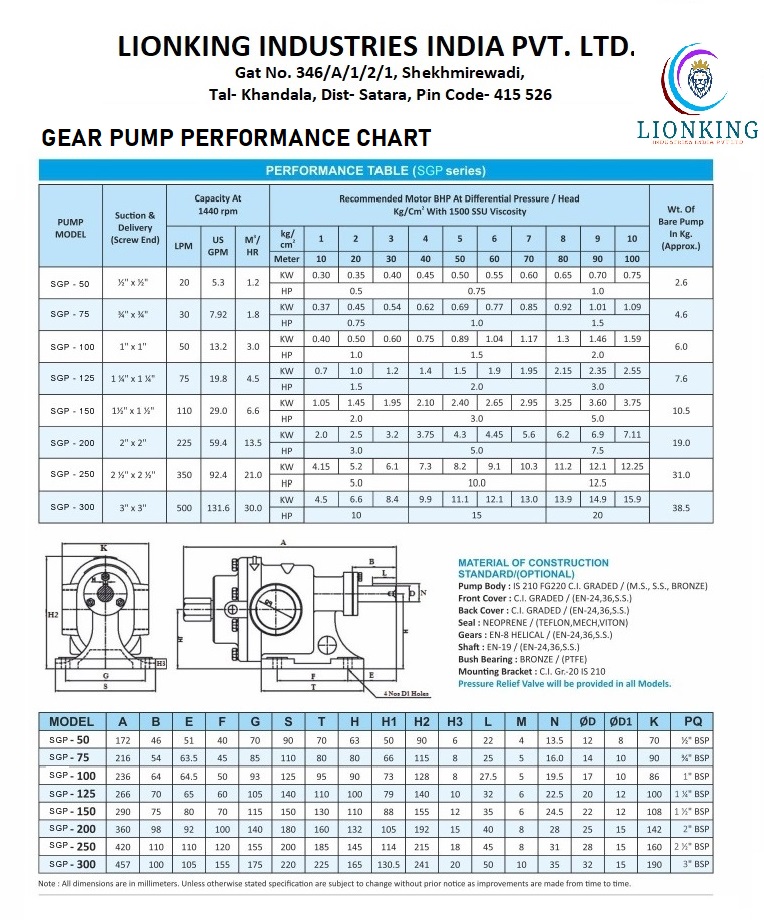

Technical Specification :-
- Capacity : 0.5 HP to 20 HP
- Head : 10 Meter to 100 Meter
- Flow : 0.4 m3/hr-30 m3/hr
- Speed : 1440/1000/750 RPM at 50 HZ
- MOC : cast iron/ SS316 / SS304
- Temperature : up to 400 Deg C
- Pressure : up to 12 kg/cm2.
Material of Construction :-
- pump body– is210fg220 ci graded/(ms,ss,bronze)
- gear– en8 helical/(en-24,36,ss)
- front cover– ci graded/(en-24,36,ss)
- back cover– ci graded/(en-24,36,ss)
- shaft– en-19/(en-24,36,ss)
- bush bearing– bronze
Application :-
- Useful for Handling Highly Viscous or semiViscous Liquids.
- All kinds of oil Transfer
- For Transferring Glycerin Glycol, Sorbitol and Glue.
- For Applications like Paint, varnish, Resins Polymers etc.
- Solvents, Alcohol Transfer.
- Diesel transfer
- All kinds of Fish. Animal Oils
- Far transferring Thermic Fluids
- For Soap Solution
Refineries | Rubber Industries | Food Processing | Thermal And Atomic Power Plants | Drugs & Pharmaceutical Industries Heavy Machinery & Equipment’s | Paper & Pulp Industries | Power Plant
